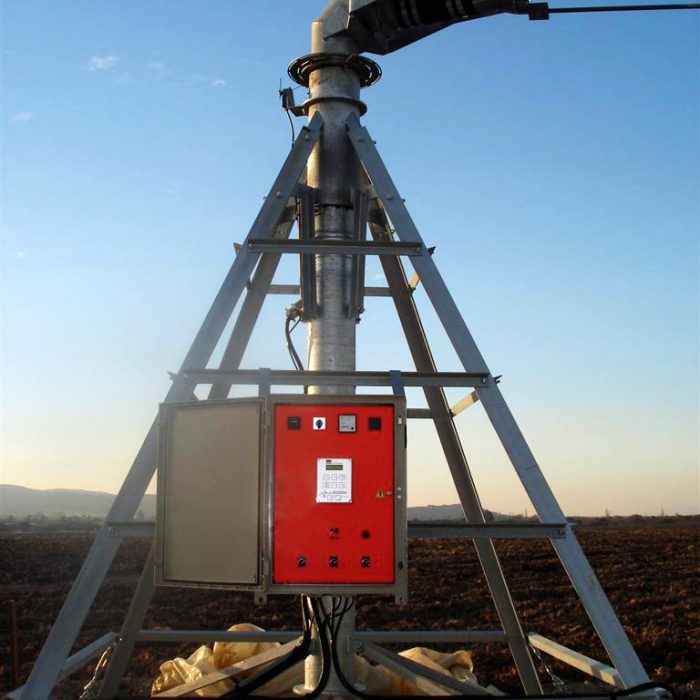

The central unit

Download PDF

Like the 1040 VPS reel machines, the 1050 and 1055 VPS have been designed to limit crop damage when they are set up. This means that they are ideally suited to all types of crop and have pressure of 5.5 to 10 bars.

The central unit for IRRIFRANCE pivots has 2 stop commands:

The gun stop command is an end spraying management system. It is used to start up or stop the gun and/or the cantilever sprinklers.
The stop valve command is used to close the pivot or lateral move supply gradually when spraying is complete, or automatically when a safety is triggered. It is linked to all the electronic controllers and is available in 3’’, 4’’, 5’’ or 6’’.

Technical data sheet

Central unit height: 3.90 m
Spurs available under the lower elbow joint (1″ thread)
Waterproof polyester command cabinet for good external resistance
Double door acts as a cold side for condensation and meets European standards
Structure upright in 70x70x7(ø114), 80x80x8(ø127, ø141) and 100x100x10 (ø168, ø 193, ø 245)

L Type cabinet

Fibreglass loaded polyester waterproof cabinet
External dimension 645 x 435 x 250
External dimension 645 x 435 x 250
Polyurethane painted panel double door
On/Off switch – “Power on” light – Time counter
Cyclical doser with percentage value display
With water/without water on switch
Forward/Reverse/Auto on switch (Sector pivot)
Safety light and safety trigger push button

L Type electronic cabinet

This cabinet is compatible with all Irrifrance pivots. Thanks to its simplified design it has a small number of internal components. With it, it is possible to:

Programme the irrigation directly by dose
Set a different dose in forward and reverse operation
Programme a cycle start timer
Programme a forward and reverse timer
Count the number of operating and irrigation hours

S Type cabinet

Fibreglass loaded polyester waterproof cabinet
External dimension 750 x 535 x 300
IP 55 protection index (Télémécanique manufacture)
Polyurethane painted panel double door
On/Off switch – Voltmeter – Phase switch
Cyclical doser with percentage value display
With water/without water on switch
Forward/Reverse/Auto on switch (Sector pivot)
Safety light and safety trigger push button
General cabinet disconnecting switch
Safety relay – Pressure switch relay

Pivotcontrol type cabinet (management and control system)

The pivocontral enables as standard:

Direct programming of the sectors sprayed, either as doses, percentages or duration
Full circle spraying or spraying up to twenty sectors with different doses
Mono or multi-cycle management, reversal timer
Deferred start management
Arrival time display for each sector
Option: management by GSM or IMS remote management

Pivodoseur 2 Type cabinet

Identical programming possibilities to the Pivocontrol, with angle information provided by an absolute encoder mounted in series in a 14 track collector, to manage up to five options. Thanks to this absolute encoder, the row position is known with accuracy of 0.1°.

11 wire multi-conductor cable
1 single conductor available for an option
